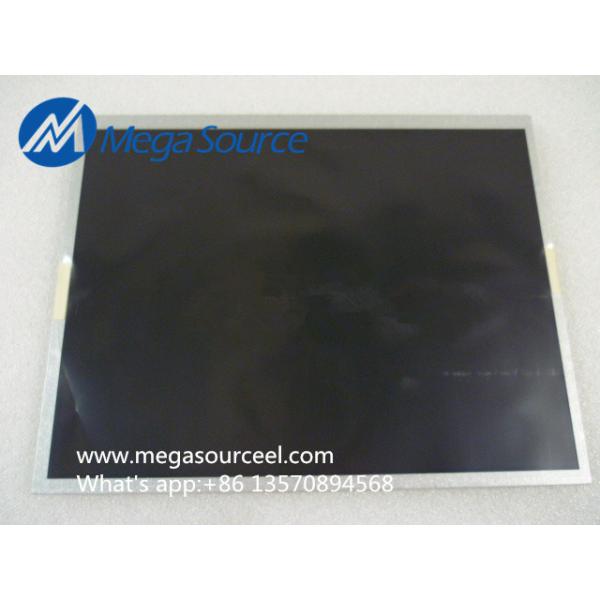

AUO 12.1inch A121EW02 V0 CELL LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

AUO 12.1inch A121EW02 V0 CELL LCD Panel

Place of Origin : Japan

Brand Name : AUO

Certification : RoHS Compliant

Model Number : A121EW02 V0 CELL

MOQ : 1 PCS

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : A121EW02 V0 CELL

Panel Brand : AUO

Descrition : a-Si TFT-LCD ,12.1 inch, 1280×800

Panel Type : a-Si TFT-LCD

Contact Now

AUO 12.1inch A121EW02 V0 CELL LCD Panel

Specification for A121EW02 V0 CELL:

Panel Model

A121EW02 V0 CELL

Panel Brand

AUO

Descrition

a-Si TFT-LCD ,12.1 inch, 1280×800

Panel Type

a-Si TFT-LCD

Display Mode

TN, Normally White, Transmissive

Active Area

261.12×163.2 mm

Outline

270.82×171.43 mm

Surface

Contrast Ratio

350:1 (Typ.)

Display Colors

262K (6-bit)

Response Time

12/18 (Typ.)(Tr/Td)

Viewing Angle

65/65/50/65 (Typ.)(CR≥10) (L/R/U/D)

Frequency

60Hz

Signal Interface

LVDS (1 ch, 6-bit) , 20 pins

Input Voltage

3.3V (Typ.)
